ICOM 5995
Performance Instrumentation and Visualization for High Performance Computer Systems
Department of Electrical & Computer Engineering
University of Puerto Rico – Mayaguez
Fall 2002

Lecture 4: September 25, 2002

Evaluate outcome of homework 3: evaluating Amadeus/LAM MPI using NPB.

Topics:

Overview of parallel and distributed systems

Software Environments

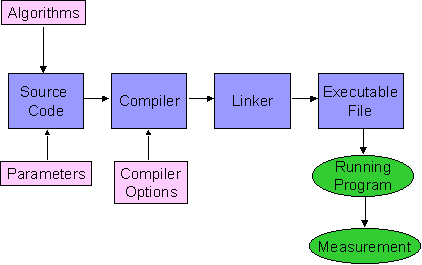

Mapping Process







What software tools are used for mapping algorithms to HPC systems?



Programming Languages:

Fortran

C/C++

Java

Others

Libraries

MPI: Message Passing Interface

OpenMP:

High Performance Fortran (HPF)

Others (eg. PVM).



Terminology of Parallelism

Task

A logically discrete section of computational work.



Parallel Tasks

Tasks whose computations are independent of each other, so that all such tasks can be performed simultaneously with correct results.



Serial Execution

Execution of a program sequentially, one statement at a time.



Parallelizable Problem

A problem that can be divided into parallel tasks. This may require changes in the code and/or the underlying algorithm.

Example of Parallelizable Problem:

Calculate the potential energy for each of several thousand independent conformations of a molecule; when done, find the minimum  energy conformation

Example of Non-parallelizable Problem:

Calculation of the Fibonacci series (1,1,2,3,5,8,13,21,...) by use of the formula:  F(k + 2) = F(k + 1) + F(k)



Types of Parallelism

Two basic types:

Data parallelism: each processor performs same task, but on different data.

Example: Searching census data



Functional parallelism: different tasks on different processors.

Example: Ecosystem model, with each processor representing different level of food chain



Observed Speedup



Observed speedup of a code which has been parallelized =

 wall-clock time of serial execution

--------------------------------------

 wall-clock time of parallel execution



Synchronization

The temporal coordination of parallel tasks. It involves waiting until two or more tasks reach a specified point (a sync point) before continuing any of the tasks.

·        Needed to coordinate information exchange among tasks.

·        Ex: parallelizable problem above

·        Can consume wall-clock time because tasks(s) sit idle waiting for other tasks to complete

·        Can be a major factor in decreasing parallel speedup



Parallel Overhead

The amount of time required to coordinate parallel tasks, as opposed to do useful work.

Examples:

·        Time to start a task

·        Time to terminate a task

·        Synchronization time



Granularity

A measure of the ratio of the amount of computation done in a parallel task to the amount of communication.



Finer granularity ==> more synchronization ==> less speedup



Massively parallel system

A parallel system with many processors. "Many" is usually defined as 1000 or more processors.



Scalable parallel system

A parallel system to which the addition of more processors will yield a proportionate increase in parallel speedup. Some factors:

·        Hardware

·        Algorithm you use for parallelization

·        How well you code the algorithm



Taxonomy of Parallel Programming Tools

Taken from: Appelbe B. and D. Bergmark, “Software Tools for High Performance Computing: Survey and Recommendations”, Scientific Programming, Volume 5, No. 4, Fall 1996.

Compilers:

For Fortran, C/C++, Java. The input may be ether sequential or parallel.

Example: KAP/PRO, PGI Workstation (PGI's parallelizing F77, F90, HPF, C and C++ compilers and development tools. Includes the OpenMP parallel debugger/profiler).

Program Restructurers and Parallelizers

Convert sequential or partially parallel programs into efficient parallel programs. Transforms source code into source code (not executable or object code like compilers).

Example: ParaWise (the Computer Aided Parallelization Toolkit (previously known as CAPTools) takes a serial FORTRAN 77 code and automatically generates: Message Passing Parallel FORTRAN 77 code, shared Memory directive code using OpenMP, or a hybrid of Message Passing and OpenMP.)

Parallel Debuggers

Extend traditional debuggers with the ability to control and monitor execution of individual tasks. Parallel debuggers should be capable of detecting parallel errors at runtime, such as race conditions.

Example: TotalView. Parallel debugger for MPI

Execution and Performance Analyzer

Execution analyzers tell the user what happened during the execution of a program. They are post mortem. Performance analyzers determine resources bottleneck, and may suggest source code modifications to remove these. Performance analyzers can include tools to automatically instrument programs to gather trace data for later analysis.

Example: TAU. TAU (Tuning and Analysis Utilities) is a visual programming and performance analysis environment for parallel C++, Java, C, Fortran 90, HPF, and HPC++. The TAU tools are implemented as graphical hypertools. While they are distinct tools, they act in concert as if they were a single application.

Libraries

Canned parallel libraries and packages can greatly reduce development effort

Example: BLAS (Basic Linear Algebra Subprograms). The BLAS (Basic Linear Algebra Subprograms) are high quality "building block" routines for performing basic vector and matrix operations.
