Images from the presentation: "Non-Precipitating Stratus Cloud Characterization Using a Ground-based Microwave Doppler Radar" - PDF Format.

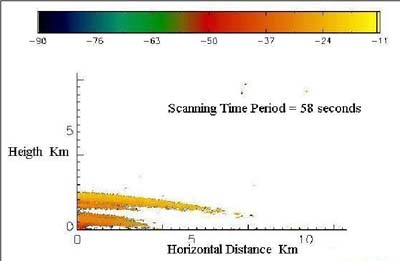

This image was obtained by setting the Reflectivity on the cloud's characterization parameters to 33dB (Z33 [dBZ]) while using a scanning period of 58 seconds. |

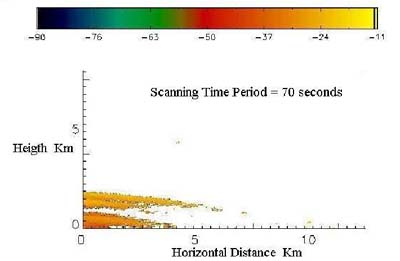

This image was obtained by setting the Reflectivity on the cloud's characterization parameters to 33dB (Z33 [dBZ]) while using a scanning period of 70 seconds. |

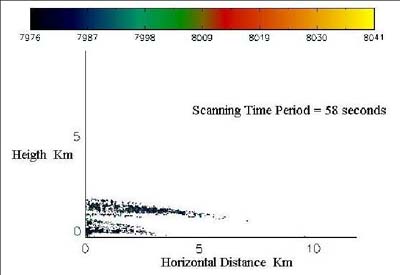

This image was obtained by setting the peak number concentration on the cloud's characterization parameters to 8,000 (N0=8,000) while using a scanning period of 58 seconds. |

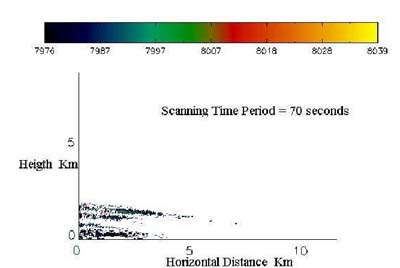

This image was obtained by setting the peak number concentration on the cloud's characterization parameters to 8,000 (N0=8,000) while using a scanning period of 70 seconds. |

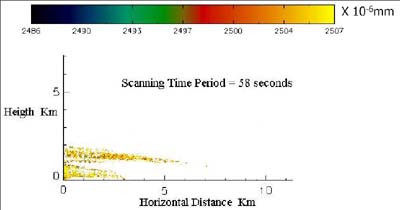

This image was obtained by setting the effective diameter on the cloud's characterization parameters to 2.5 micrometers (D0=2.5 μm ) while using a scanning period of 58 seconds. |

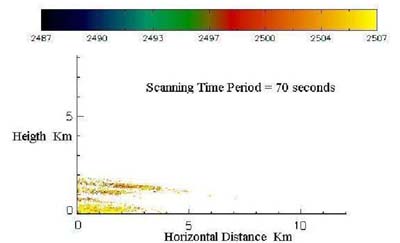

This image was obtained by setting the effective diameter on the cloud's characterization parameters to 2.5 micrometers (D0=2.5 μm ) while using a scanning period of 70 seconds. |
|
